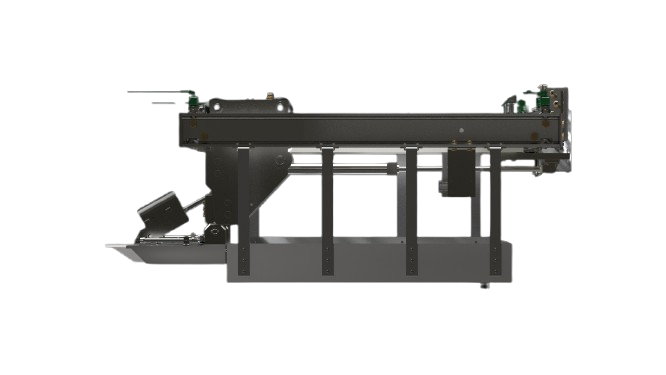

The Jarvis BHR-2 Hydraulic Hock Restrainer is an advanced solution designed to provide safe and efficient hide pulling in beef processing operations. Fully automated, the BHR-2 effectively relieves trolleys and rails during the hide removal process, preventing tendon damage and eliminating the risk of broken trolleys or hooks. This automation reduces kill floor downtime and enhances operational efficiency by removing the need for manual re-hanging of fallen carcasses.

Key Features:
Automated Efficiency:
Automatically relieves trolleys and rails during hide pulling, reducing downtime and improving workflow.
Injury Prevention:
Prevents pulled tendons and broken trolleys, ensuring a smooth and safe hide removal process.
Enhanced Hygiene Compliance:
Features an automatic internal sanitization cycle with water-efficient consumption of 1.14 L per cycle, maintaining high cleanliness standards.
Durable Construction:
Built with food-grade stainless steel and rugged galvanized materials for long-lasting performance and easy cleaning.
Cost-Effective Operation:
Conserves resources through optimized water consumption, delivering economic benefits without compromising hygiene.

The Jarvis BHR-2 Hydraulic Hock Restrainer is the ideal choice for beef processing facilities seeking to improve productivity, maintain hygiene standards, and reduce operational costs through automation and innovative design.

Technical Specifications:
Drive
Hydraulic

Total Lifting Capacity
2268 kg (5000 lbs)

Controls
Automated

Overall Dimensions (Length x Width x Height)
229 x 173 x 79 cm (90 x 68 x 31 in)

Compressed Air Supply
0.57 m³/min at 6.2 bar (20 ft³/min at 90 psi)

Sanitizing Water Consumption (per sanitization cycle)
1.14 L at 2.76 bar (0.3 gal at 40 psi)

Required Water Supply
45 L/min at 2.76 bar (12 gal/min at 40 psi)

Weight
953 kg (2100 lbs)

Hydraulic Power Unit Technical Specifications
Motor Power
11.2 kW (15 hp)

Operating Voltage
575 / 460 / 230 V, 3 phase, 60 Hz (other voltages and 50 Hz available)

Hose Length
2.4 m (8 ft)

Oil Capacity
397 L (100 gal)

Oil Flow Rate
110 L/min (29 gal/min)

Overall Dimensions (Length x Width x Height)
1525 x 686 x 1039 mm (60 x 27 x 40.9 in)

Weight (without oil)
306 kg (675 lbs)

Oil Viscosity at 100°F / 40°C
46 ISO (200 SUS)

Equipment Selection & Accessories
Model BHR-2 Configurations
Model BHR-2 (24 in spacing, 460 / 230 V, 3 phase, 60 Hz) – Order Number: 4046035
Model BHR-2 (18 in spacing, 460 / 230 V, 3 phase, 60 Hz) – Order Number: 4046039
Model BHR-2 (24 in spacing extended, 460 / 230 V, 3 phase, 60 Hz) – Order Number: 4046037
Model BHR-2 (24 in spacing, 400 V, 3 phase, 50 Hz) – Order Number: 4046040

Accessories
Air Filter / Regulator / Lubricator – Order Number: 3022003
